ICHINEN TASCO CO.,LTD.

High Performance Electronic Chargng Scale

• ITEM NO
  TA101FB
• WEIGHT
  3.9kg
• PRICE
  JPY 32,800

Classic Charging Scale with Input/Output Port

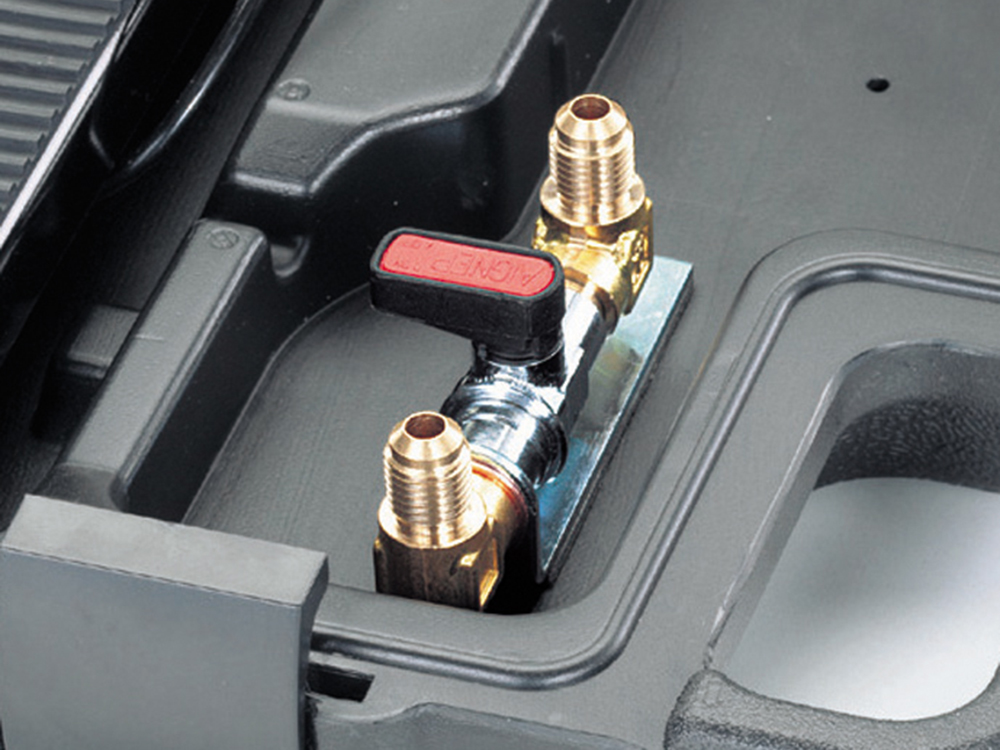

Port with ball valve attached.
Since the manifold\'s charging hose does not have to be connected directly to the cylinder,
the scale will not be affected during operation and can maintain it\'s accuracy.
With the \”Light\” button you can see the numbers on the indicator even in the dark.
Compact, Easy to carry designed case.
Removale Platform is enable to work in narrow space.(Platform with rubber foots)
LED sidelights attached.
Noise prevension structure.
Power-saving designed.
Made in Japan.

Primary Specification

• Resolution
  5g
• Capacity
  50kg(applicable to 20kg cylinders)
• Platform Size
  230(L) x 230(W) mm
• Power Supply
  DC9V(C cell battery x 6)
  AC100V(sold separately)
  (Can use either one of the above)
• Operating Temperature
  5～40℃
• Input Port
  1/4 flare (5/16 flare adapter attached)
• Output Port
  1/4 flare (5/16 flare adapter attached)
• Outer Dimensions
  395 (L) x 285 (W) x 65(D) mm
• Attachments
  R410A adapter x 2
